UV Laser Marking Machine

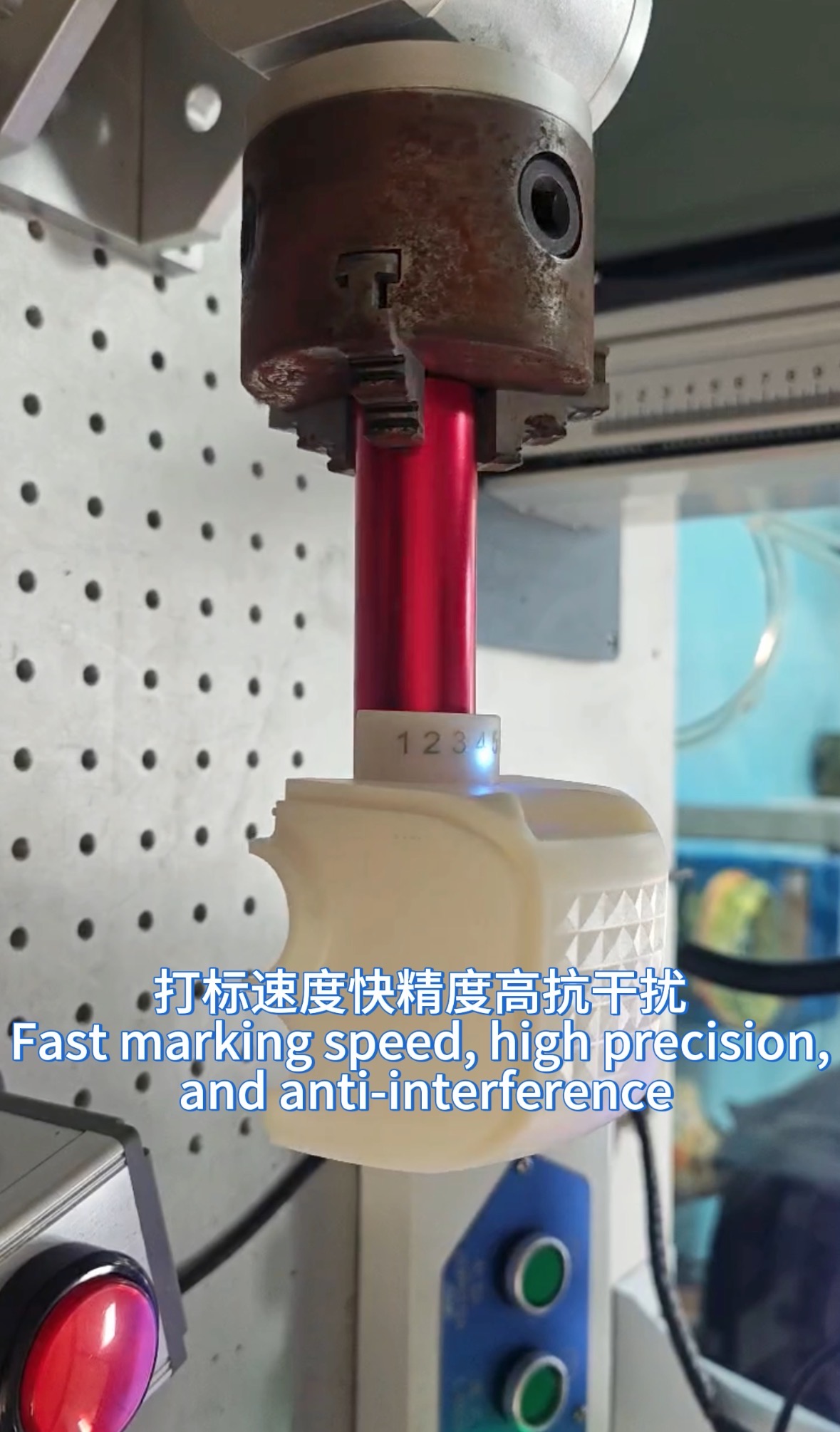

1. High-speed Digital Galvanometer

• Fast marking speed, high precision, and anti-interference.

2. Dual Red Lights

• Dual red lights for auxiliary focusing.

3. Fine Marking

• Cold light source suitable for fine marking of products.

4. Industrial Control Computer

• Professional configuration for continuous, stable, and smooth operation.

5. Economic, Environmentally Friendly, and Long Lifespan

• Low power consumption, no consumables, and the laser has a theoretical lifespan of 20,000 hours.

6. Maintenance-free

• Closed optical path requiring no cleaning or maintenance.

Technical Parameters

• Optional power: 3W/5W/10W

• Laser wavelength: 355nm

• Frequency range: 1 - 200KHz

• Divergence angle: 0.3mrad

• Output beam quality (M²): 1.2 - 1.5

• Minimum focusing spot: 0.01mm

• Minimum line width: 0.02mm

• Minimum character: 0.5mm

• Repeatability: 0.001mm

• Marking speed: <15000mm/s

• Engraving depth: 0.01 - 2mm (material-dependent)

• Standard marking range: 110x110mm

• Optional marking range: 70x70mm - 200x200mm

• Cooling method: Water cooling

• Power requirement: 110/220V 50Hz

• Total power consumption: 700 - 1000W

Applicable Materials

1. Most plastics, leather, glass, ceramics, jade, crystal, metal coatings, etc.

2. UV laser marking machines are mainly used in high-end markets for ultra-fine processing, such as marking on the surfaces of packaging bottles for cosmetics, pharmaceuticals, food, and other polymer materials, with fine and clear marks that are more durable than inkjet coding and pollution-free; marking and dicing of flexible PCB boards; micro-hole and blind-hole processing of silicon wafers; QR code marking on LCD glass, marking on glassware surfaces, marking on metal surface coatings, plastic buttons, electronic components, gifts, communication equipment, building materials, etc.
